Gas Induction Reactor

Chemical reaction in viscous liquids and slurries suppliers in mumbai ,Chemical reaction in viscous liquids and slurries suppliers in India, Pressure Reactions, Hydrogenation, Amination , Supplier of Pressure Reactions, Hydrogenation, Amination, shaft punctures Reactor , shaft punctures Reactor Manufacturer, shaft punctures Reactor Manufacturer in mumbai, shaft punctures Reactor manufacturer in india , supplier of shaft punctures Reactor, Manufacturer , supplier of catalyst filters for hydrogenators and autoclaves, catalyst filters for hydrogenators and autoclaves Manufacturer in mumbai, catalyst filters for hydrogenators and autoclaves manufacturer in India, Hydrogen gas in reactor headspace, Hydrogen gas in reactor headspace Manufacturer , Hydrogen gas in reactor headspace Manufacturer in mumbai , Hydrogen gas in reactor headspace Manufacturer in india

❮ ❯

In the Process Industry, many chemical reactions are carried out between liquids / slurries and gases, Traditionally, such gas-slurry reactions have been carried out with the help of equipment, where basically, an agitator was used to stir the liquid in the Reactor. This somewhat clumsy method resulted in less than satisfactory performance, due to non-ideal mixing, which led to poor catalyst suspension, negligible gasliquid interfacial areas, as well as low heat and mass transfer coefficients.

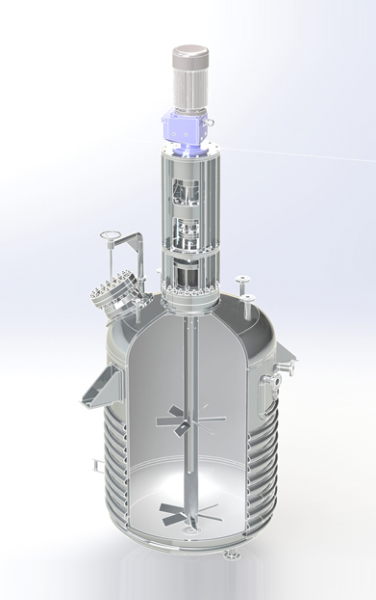

An Omega Kemix Gas - Induction Reactor offers a radial change from this conventional approach. Instead of churning the liquid reaction mass, a hollow agitator pumps gases from the head space to the lowest part of the Reactor vessel, as shown in the picture. A specially designed impeller vigorously disperes these gases into the reactor bottom, resulting in a mixture akin to a boiling liquid. Gas bubbles react with liquid/ slurry as the as they rise. Unreacted gases are re-inducted into the liquid.

Applications

Hydrogenation	Oxidation
Ozonisation	Carboxylation
Amination	Aminolysis
Ethoxylation	Similar Gas - Slurry Reactions

Catalogue Enquiry

Mixing mechanism

A Gas-Induction Reactor is fitted with

Hollow rotating shaft with aspirating holes
Blower-like impeller at its lower end

Since the gas is pumped against the static liquid head, there are restrictions on the L/D ratio of these reactors. Economical designs have L/D ranging from 1 to 1.6, where L is the Tan Height of the vessel.

The self-aspiration agitator

Vigorous Gas Liquid mixing
Minimal side reactions
Reduced Batch times
Excellent Batch-to-Batch Repeatability
Large gas-liquid interfacial areas Typical, interfacial area is 100 to 300 m2
Thorough suspension of solid components (e.g Catalyst)
Enhanced Gas-Liquid and Liquid Mass Transfer Rates
Very high vessel side heat transfer coefficients, which approach boling coefficients

Heat Transfer

GAS INDUCTION REACTOR VS. CONVENTIONAL AGITATED VESSELS

GAS INDUCTION REACTOR	CONVENTIONAL AGITATED VESSELS
Designed for Gas-Liquid reaction applications	Suitable for stirring of liquids and slurries.
Impeller is designed only to pump gas at the bottom of liquid column. Hence consumes less power.	Impeller designs are not energy efficient.
Gas-Induction creates uniform catalyst suspension resulting in optimum use of charged catalyst quantity.	Catalyst suspension may not be uniform and some quantity may settle at the bottom resulting in non participation of this catalyst in the reaction.
Generates huge amount of Gas-Liquid interfacial area resulting in fastest possible reaction time with comparatively lower catalyst loadings.	Interfacial area is very poor as the agitator is designed only for stirring the mass. Extra catalyst quantity is required to improve sluggish rate of reaction.
Faster reaction leads to shortest possible batch time resulting in lesser impurities and higher yields.	Due to sluggish rate of reaction, batch time is longer resulting in many unwanted side reactions and lesser yields.
Vigorous gas-induction leads to boiling heat transfer co-efficients. Hence, fastest possible heating and cooling time.	Due to sub optimal heat transfer co-efficients, heating and cooling times are longer. Utility loads will be higher.
Available with Magnetic seals which are maintenance free and no spares are required to be maintained by user.	Mechanical seals tend to leak frequently resulting in downtime and production loss. Expensive seal spares are required to be stocked by user.
